FPC0.5-60PT-BO-V1A-50PIN 0.5mm 50 pin FPC to FPC bridge breakout board

FPC0.5-60PT-BO-V1A-50PIN

This is a 0.5 pitch FPC pass-through breakout board with two 50-pin FPC connectors included. The 50-pin FPC connectors work on both Top and Bottom contact. All 50 pins of the FPC connector are brought out to the two dual row 0.1" headers. You can solder this board to a standard 0.1" spacing protoboard.

Board Size: 2.3" (58.42mm) X 1.8" (45.72mm)

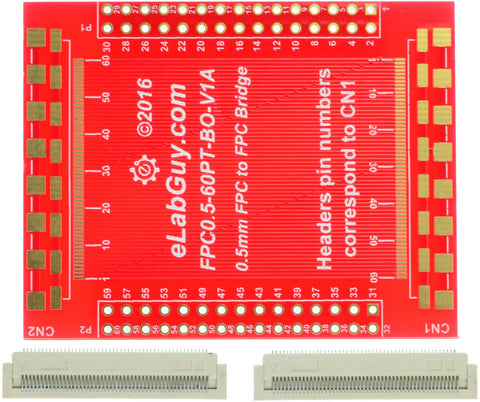

Parts:

  • 1pc X FPC0.5-60PT-BO-V1A PCB
  • 2pc X 50-pin 0.5mm pitch FPC TOP+BOTTOM contact connector

(Note: The FPC connectors are not soldered)
