USB-AM-BO-V1A USB 2.0 Type A Male Plug Breakout Board eLabGuy

  1. Description:

USB-AM-BO-V1A is a simple USB Type A male plug breakout board. It brings all 4 pins of a USB2.0 Type A connector to screw terminal blocks and headers for easy testing, prototyping and breadboard connection. For breadboard connections, user can use the 4pin header on the bottom for a sideways connection. User can also use the two 4pin headers on both sides of the breakout board to connect to the front end of the breadboard for a steady connection.

  1. Features:
  • All 4 pins of a USB Type A male header brought out to headers and screw terminal blocks
  • Various connecting method chosen by users.
  • 1.21”(30.8mm) X 1.26”(32mm) board dimensions
  1. Parts:

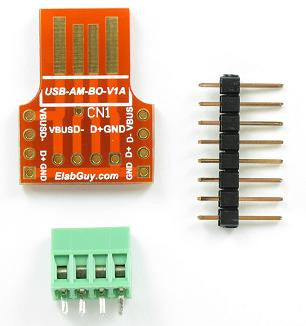

  • 1pc X USB-AM-B0-V1A PCB
  • 1pc X 4pin 0.1”(2.54mm) spacing terminal block
  • 1pc X 8pin 0.1”(2.54mm) header
